SPECIFICATIONS



Engine: 4 Stroke

Engine Position: Outboard

Fuel Type: Gasoline





Note!!!: The product is divided into two parts (Engine+Bracket). The two parts are divided into two packages to be shipped separately. For the complete product, please place an order with the two parts.



Details

Great Durability: This bracket of the outboard engine is made of sturdy and durable aluminum and plastisol. And the engine is covered by a plastic housing, which is waterproof.

Reliable and Safe: It uses 4-stroke power and air-cooling technology to improve the reliability and safety of the entire machine. It even allows for smooth and safe steering.

Speed Adjustable: There is a speed adjustment handle on this engine's control lever. The speed can be controlled by rotating the handle.

Powerful Engine: The engine is a 4-stroke 4 HP engine, so its power is very strong. Its speed can reach 15km/h. So the superpower engine makes it very time-saving and energy-saving.



Installation Instruction:

Installation Warning: Most boats are approved for a maximum power rating, which is shown on the boat's nameplate. Do not configure your boat with an outboard that exceeds this limit.
Installation position: The center of the boat's bottom
Outboard installation instructions:
1.Select the outboard engine with corresponding specification ( HP ) according to the size of the boat, and determine the shaft length of the boat engine by the height of the transom.
2.After hanging the outboard on the transom, lock it with clamping bolts.

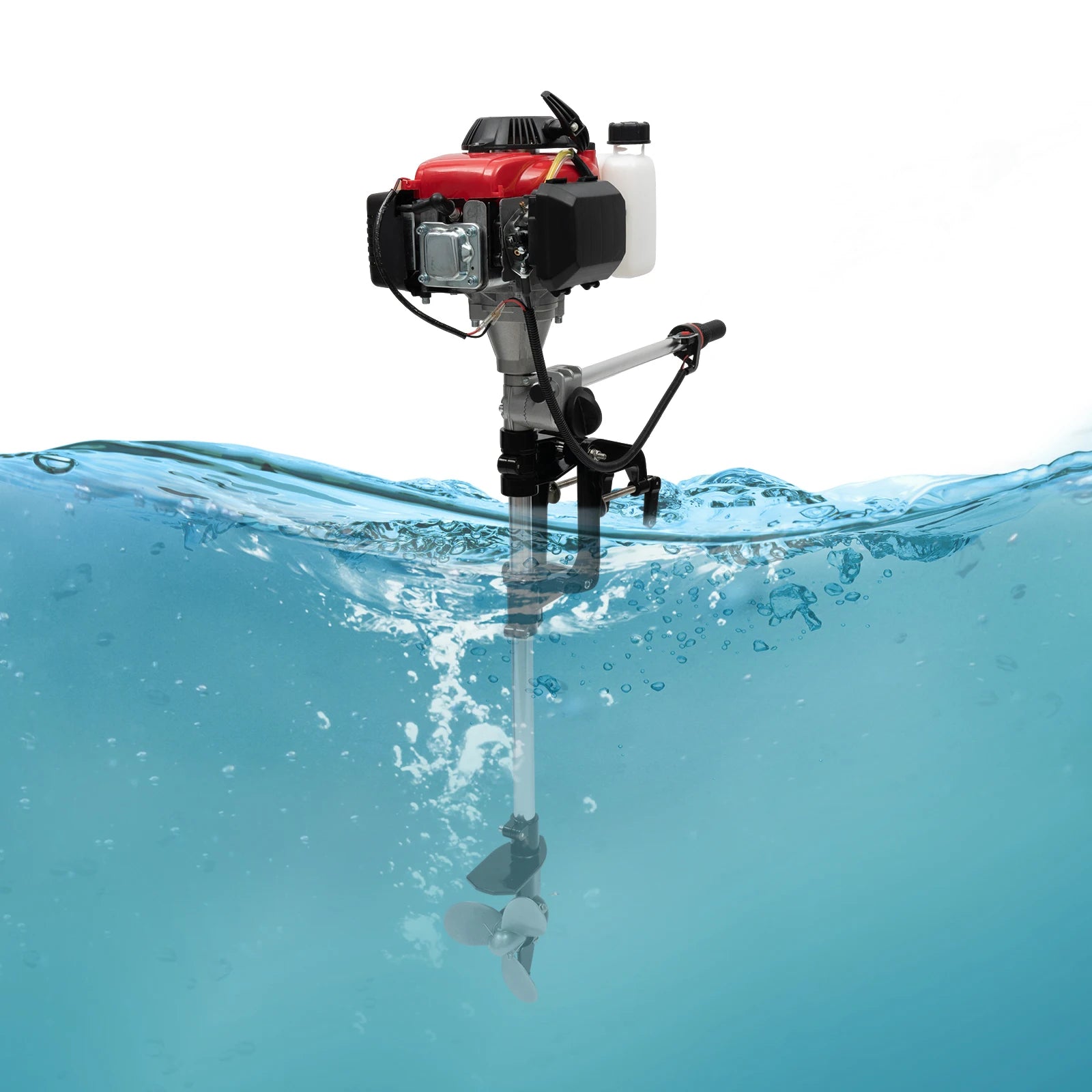

3.After the outboard is fixed, you need to pay attention to the water level to be flooded to the best water level to ensure the cooling water pump cools the engine smoothly while making the outboard propulsion system play the best thrust performance.

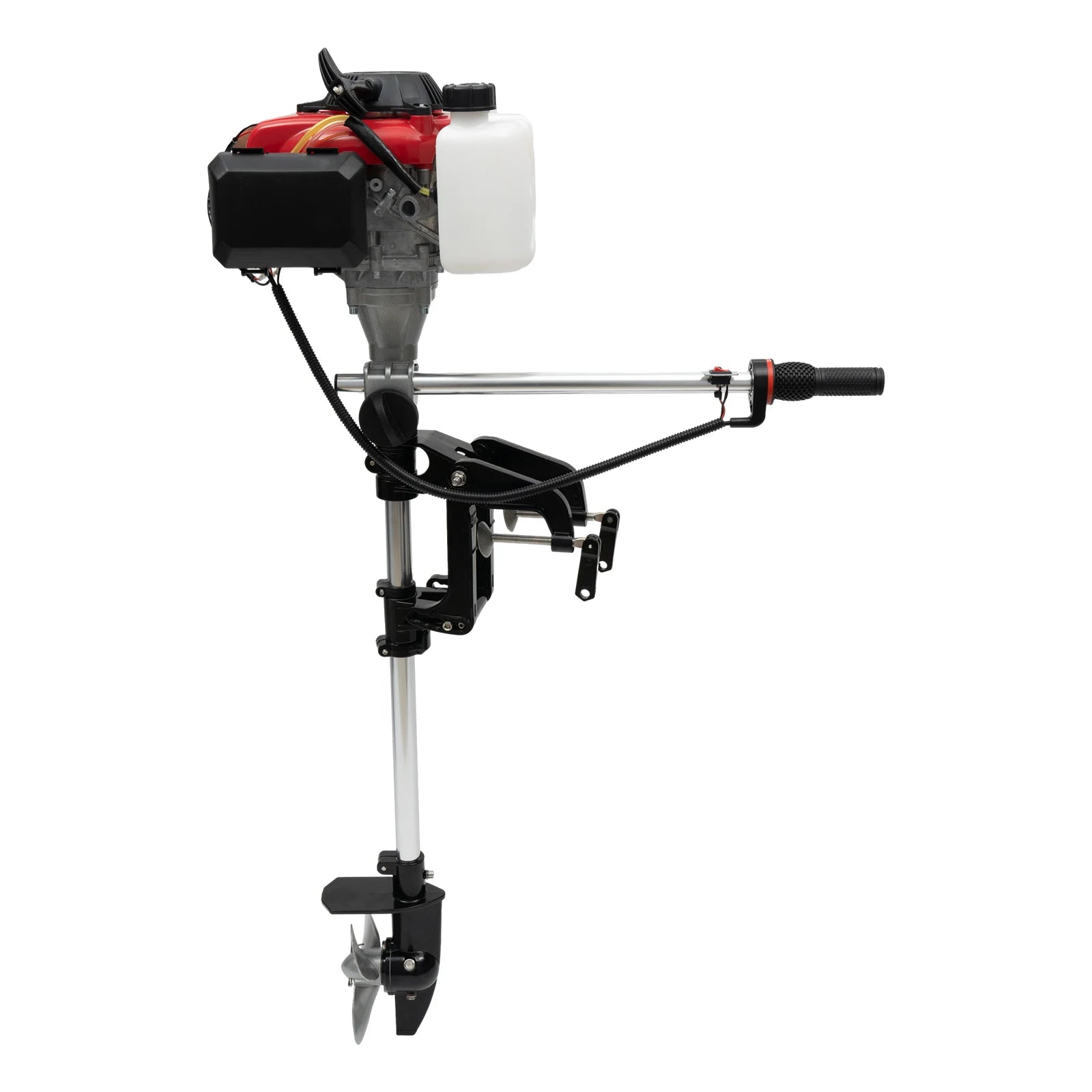

Bracket:

Material: Aluminium Rod, Plastisol Propeller
Color: Black and Silver
Drive Rod Length: 56cm/22.05inch
Small Bracket Size: 19*8cm/7.48*3.15inch
Control Lever Length: 53cm/20.87inch
Package Size: 94*19*16cm/37.01*7.48*6.30inch
Net Weight: 4.7kg/10.36lbs
Gross Weight: 4.95kg/10.91lbs



Engine:

Color: Orange, Black, Silver
Size: 26*22.5*29cm/10.24*8.86*11.42inch
Engine Model: Four-stroke 144F
Displacement: 53.2cc
Air-cooling Mode: Forced Air-cooling
Gasoline Volume: 1.2L /0.32gal
Starting Method: Hand-pull Start
Speed: 15km/h
Steering: Handle Steering
Fuel Consumption: 1-1.2 Hours/ One Tank of Gasoline
Fuel Type: Gasoline
Mounting Type: Engine



Application：

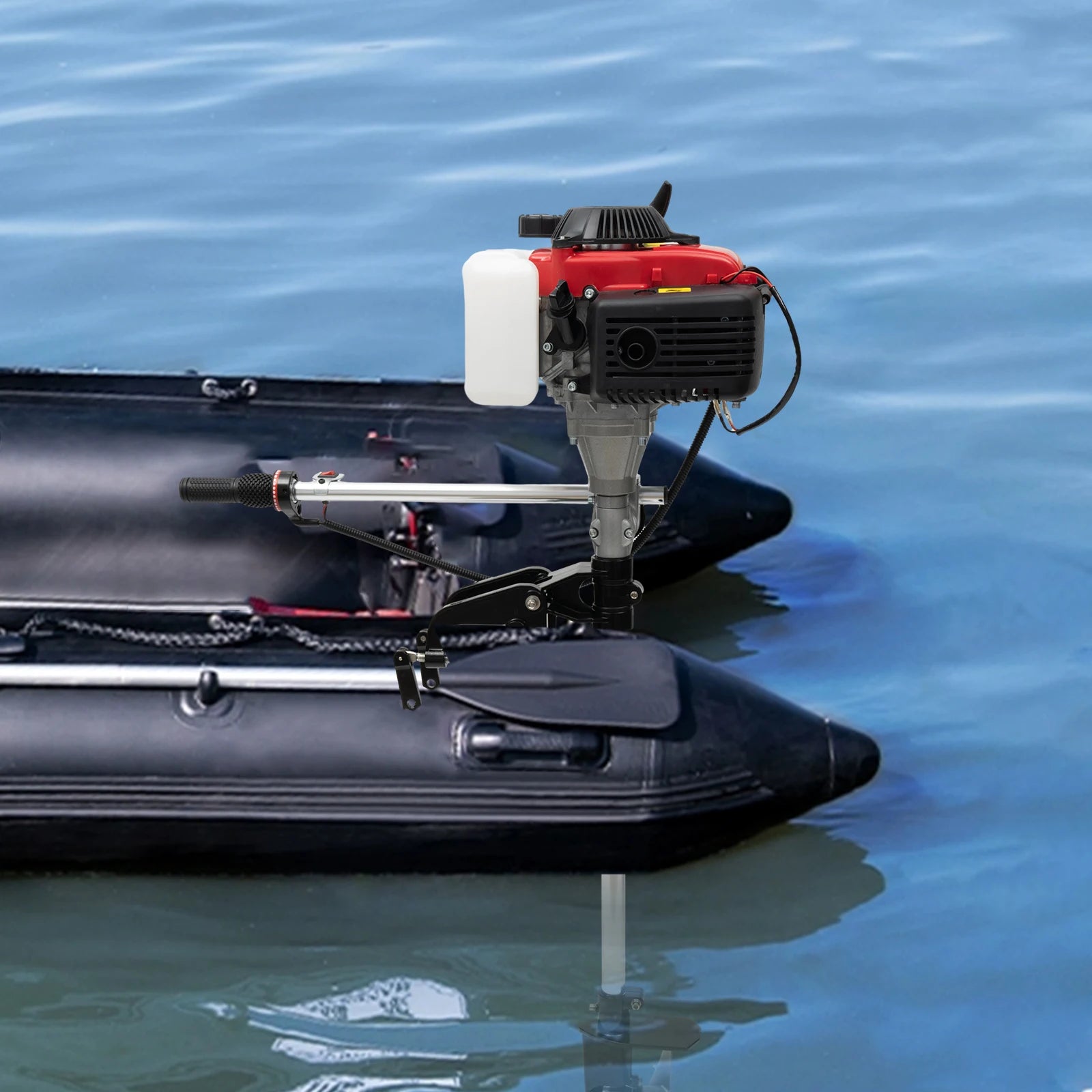

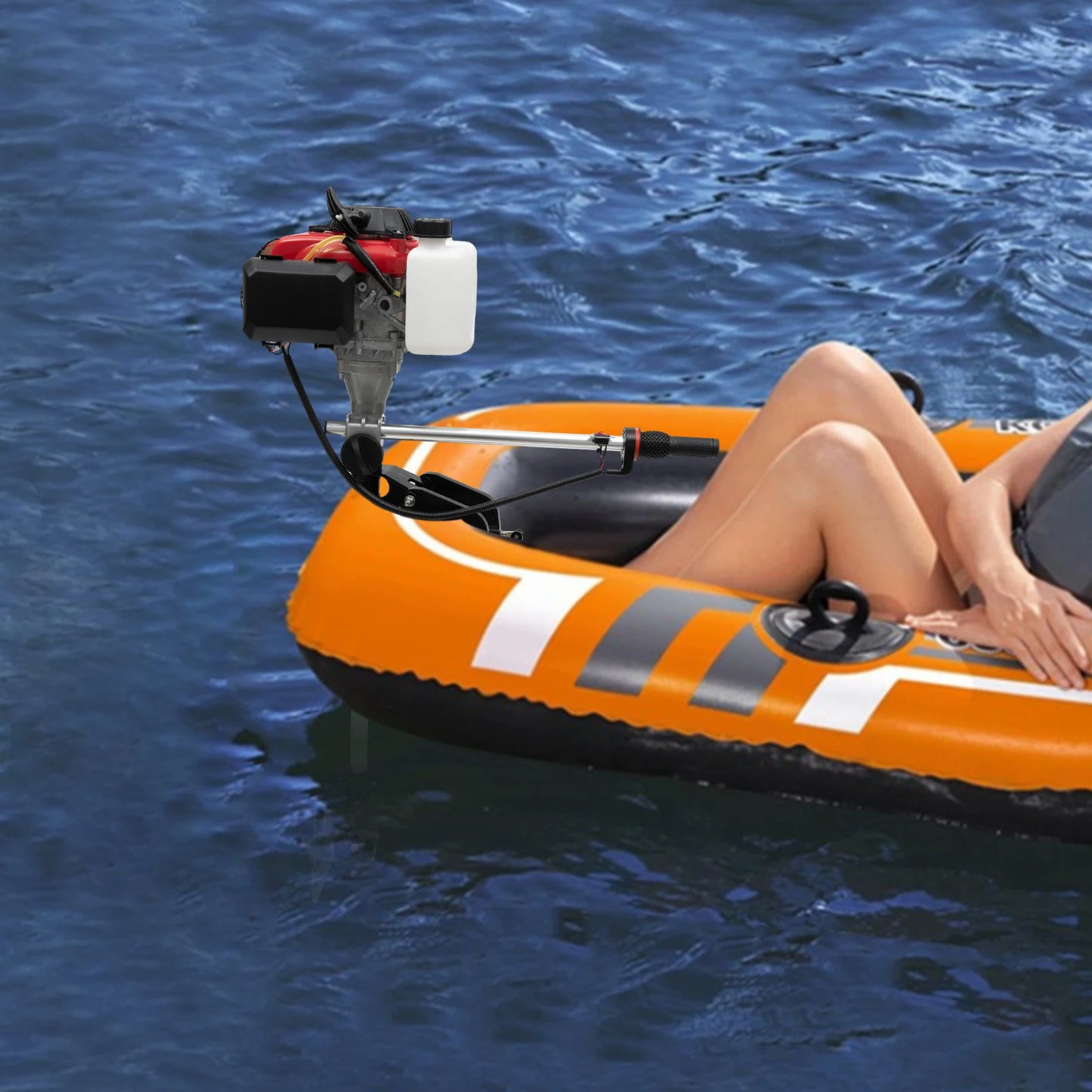

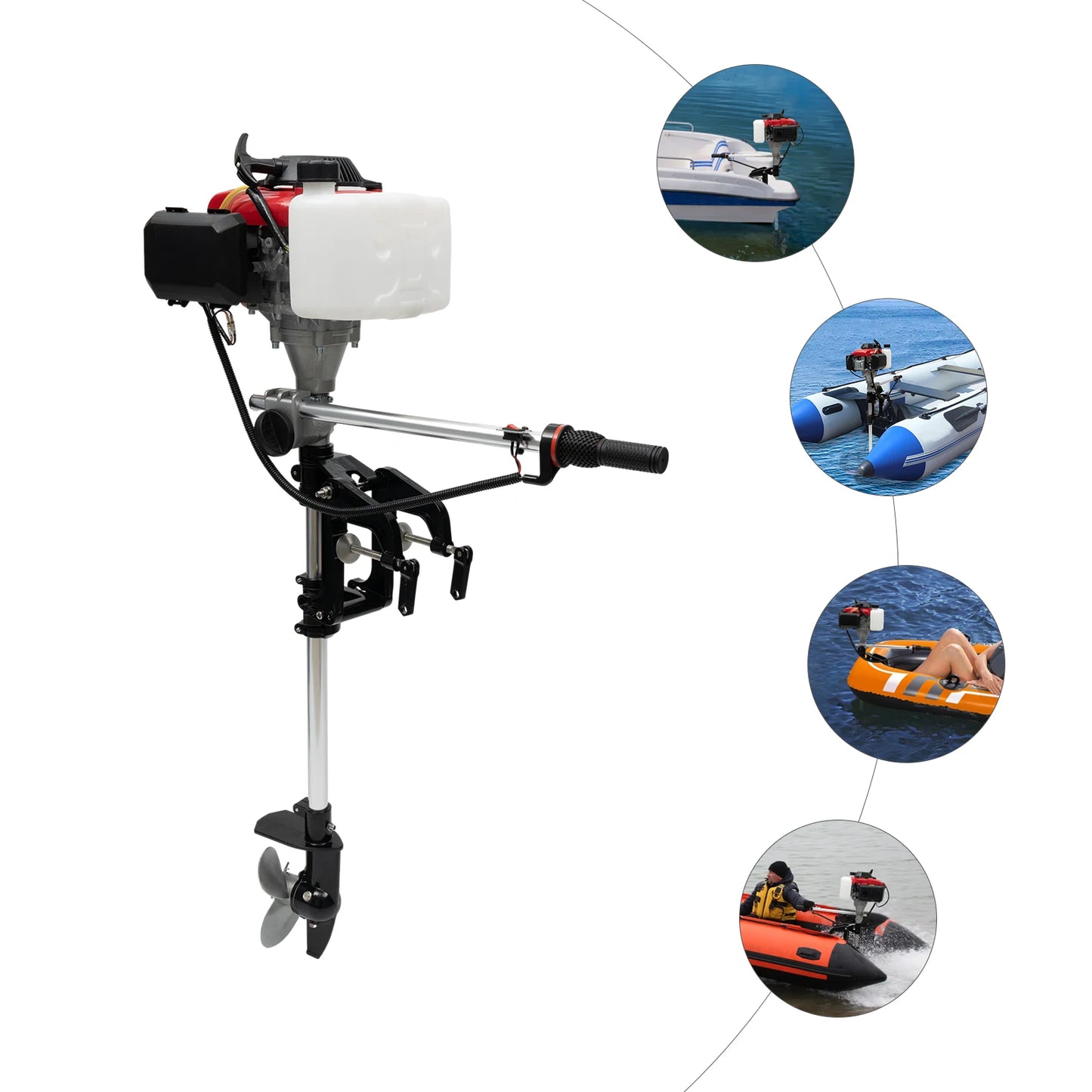

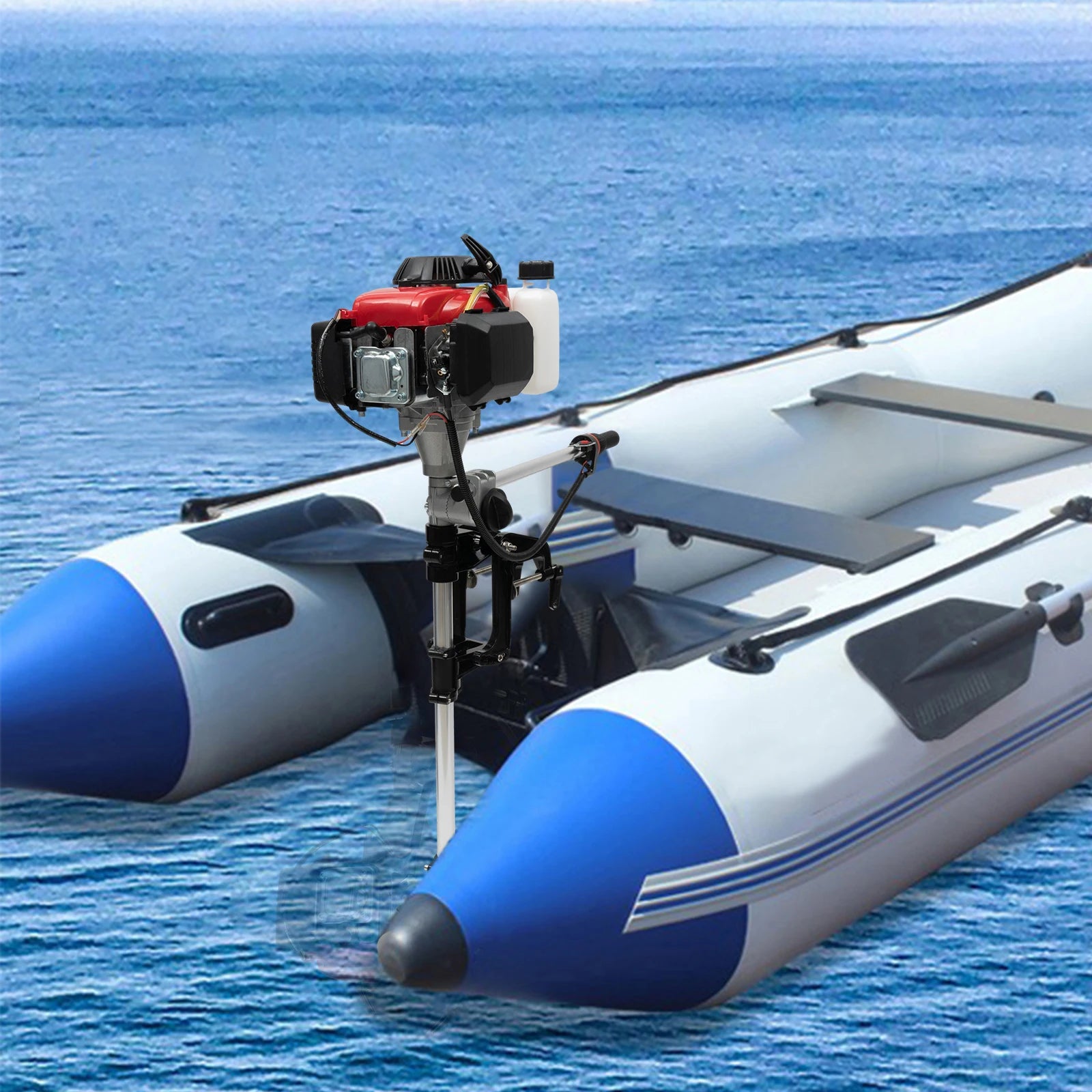

It's suitable for all kinds of small boats of 7.5-16.4ft
Rubber Boats, Fishing Boats, Wooden Boats

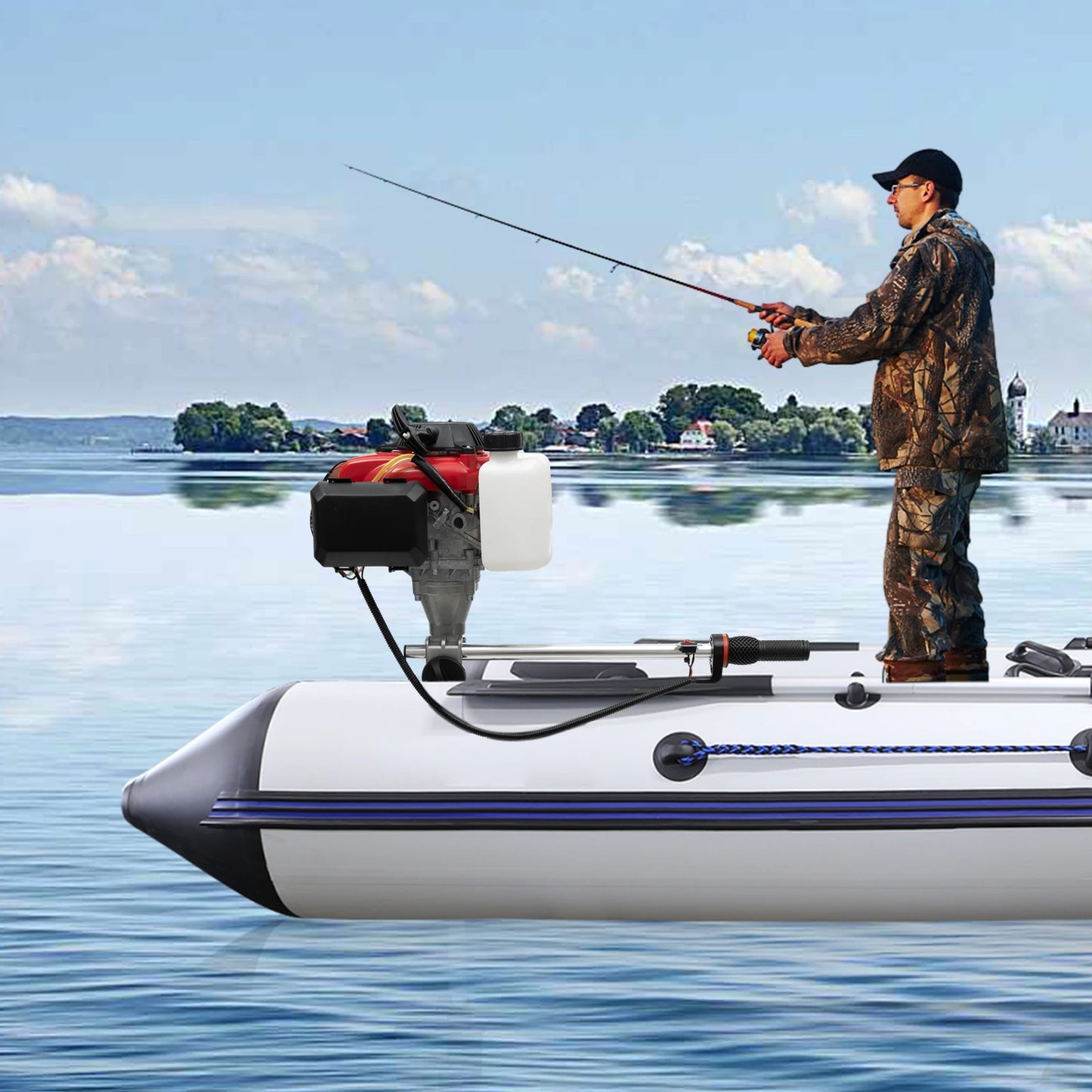

You can use it for fishing on the river, water farming, river rescue, water excursions, flood relief, etc.



Engine Package:

1* Engine
1* Measuring Cup
1* Chinese Instruction
Other Accessories for Assembly



Bracket Package:

1* Drive Rod
1* Small Bracket
1* Control Lever
1* Big Wrench
1* Metal Stick
1* Screwdriver
3* Small Wrenches
4* Screws
1* English Instruction



Notes:

1.The four-stroke 4 HP fishing boat engine is suitable for all kinds of small boats of 7.5-16.4ft, such as rubber boats, fishing boats, wooden boats, etc.
2.The built-in fuel tank can be filled once for about 2 hours at high speed, and the driving speed is about 10~15km/h. The driving distance is different due to different boat types and load water conditions.
3.Four-stroke fuel uses gasoline over 92#. The oil should be added separately to the internal oil tank.
4.Although this model hasn't a gear set, the throttle can be infinitely adjusted.
5.Before using the new machine, you must first add four-stroke special oil. And, the oil is added to the oil volume cup 200ml. Too much or too little oil will seriously affect the engine.
6.The new machine needs to change the oil once in 6 hours, and then change the oil once in 8 hours.
7.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
