SPECIFICATIONS







Hign-concerned Chemical: None

Engine: 2 Stroke

Engine Position: Outboard

Fuel Type: Gasoline

Condition: New

Cylinders: 1



Outboard machine



Key Features

Fast & Powerful: A 2-stroke engine with a maximum output of 4.4kw and 6hp, and a maximum speed of 5500rpm, provides you with unparalleled speed. The streamlined design of a 7'' three-blade propeller can reduce water resistance and provide stronger power during operation.

Selected Material: Lightweight and sturdy aluminum alloy, combined with spray painting technology, provides excellent corrosion resistance, wear resistance, heat resistance, shock resistance, deformation resistance, and other properties. You can use it with confidence in fresh water and salt water.

Easy to Operate: The throttle lever directly controls acceleration and steering. The step-less speed regulation allow you to easily adjust the running speed, combined with simple gear shifting (forward, neutral, or reverse), bringing you a more comfortable and convenient user experience.

Low Noise: The large muffler above can isolate most of the noise, making the sound of the machine running around 80 decibels, allowing you to hear other movements on the water and remain vigilant.

Small & Fuel-efficient: As an outboard motor, it is relatively small(43.3*14.56*21.26in) and lightweight(45.3lbs), making it very suitable for small ships and people who frequently navigate short distances. An efficient carburetor burns fuel more fully, with a fuel consumption rate of 0.66gal/h not only saving fuel but also reducing expenses.

Safe & Reassuring: The reliable CDI ignition system can quickly and safely start the motor, and suspension tilt adjustment pins and anti-vortex plates reduce inclination and vortices, ensuring smooth operation. The water cooling system is designed to maintain the optimal temperature, coupled with overheating protection, allowing you to continuously enjoy the fun of the navigation.

Complete Set: In addition to the outboard motor, our package also includes a funnel, manuals, safety rope, etc., which can meet your usage needs at once.

Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit as much as possible.



Details

Locking Handle: The locking handle below the muffler allows you to easily open the casing to check the internal motor.

Tail Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.

Rubber Handle Cover: The rubber-wrapped handle is softer and increases friction, providing a more reliable grip.

Cooling Water Outlet: You can determine whether the water pump is working properly by checking whether it is producing water, to promptly repair the engine if it may malfunction.



Application

It is suitable for rubber boats, inflatable boats, fishing boats, sailboats, yachts, canoes, kayaks, rubber boats, aluminum alloy boats, etc. with a stern height of 17.32 inches or less, assisting aquaculture, water transportation, net fishing, luring, outboard backup, outings, and river cleaning/maintenance.



Specifications

Material: Aluminum Alloy
Color: Black
Surface Treatment: Spray Paint
Assembly Required: No
Number of Items: 1
Engine: 2-stroke 6hp
Displacement: 102cc
Gear Ratio: 2.08(27:13)
Number of Cylinder: 1
Max. Output: 4.4KW
Max. Speed: 4500-5500r/Min
Noise: About 80DB
Gear Positions: F-N-R
Ignition System: CDI
Cooling System: Water-cooling
Control System: Tiller Control
Starting System: Manual Start
Gasoline: No.92 Lead-free Gasoline
Fuel Type: Mixed Oil (50 Gasoline: 1 2-stroke Engine Oil)
Trim And Tilt System: Manual Tilt
Fuel Tank Capacity: 2.5L/0.66gal
Fuel Consumption Rate: 2.5L/0.66gal/h
Bore*Stroke: 5.5*4.3cm/2.16*1.7in
Propeller Diameter: 18cm/7in
Handle Length: 36cm/14.17in
Adaptive Transom Plate Height: ≤44cm/17.32in
Gross Weight: 24.15kg/53.24lbs
Net Weight: 20.55kg/45.3lbs

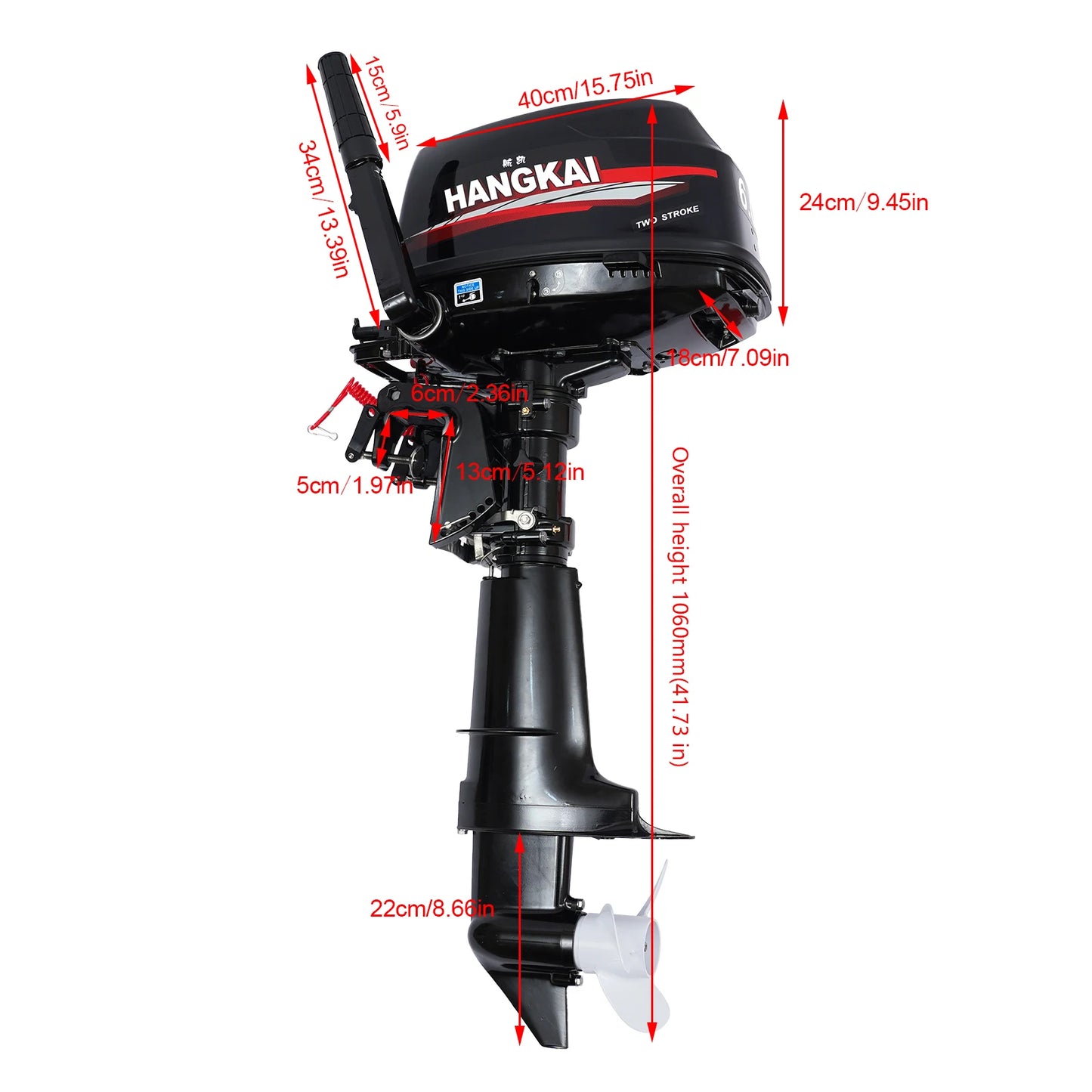

Product Size: 105*48*24cm/41.3*18.9*9.4in
Package Size: 110*37*54cm/43.3*14.56*21.26in



Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please measure the height of your boat before purchasing to ensure suitability for this product.
3.Please start the motor in the water. If the motor stops circulating water, please stop using it immediately and check the impeller of the water pump to see if the water outlet is blocked.
4.Please note that this product should use a mixture of two-stroke engine oil and 92 # unleaded gasoline. The running-in period of the new machine is 10 hours, during which the fuel ratio is 30L (7.93 gal) of gasoline to 1L (0.26 gal) of engine oil. After 10 hours, the ratio is 50 liters (13.21 gallons) of gasoline to 1 liter (0.26 gallons) of oil.
5.Please note that the emergency shutdown rope should be inserted when the outboard motor is started, and the other end should be wrapped around your wrist or belt.
6.Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later.
7.Please do not leave this product outside until the cooling water is completely used up. Otherwise, water will enter the cylinder through the exhaust port, leading to engine failure. After cruising in seawater or turbid water, please clean the outboard motor with fresh water and cool the water channel with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight.
8.If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.
9.Please note that this product is manual available in English, German and French, please contact customer service for more information.
10.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Package Included:

1x Outboard Motor
1x Flameout Rope
1x Tool Kit
1x Fuel Oil Mixing Bottle
1x Funnel
1x English Manual
1x English Operation Instructions
All Accessories for Assembly
