SPECIFICATIONS





No-Load Speed: 6800rpm

Usage: SOIL

Power Type: Petrol / Gas

Color: Black, Yellow

Engine Type: Single-cylinder Two-stroke

Material: Aluminum Alloy, Plastic

Rated Power: 1250W

Max Power: 1900W

Handle Length: 19.5cm/ 7.67in

Net Weight: 13kg/ 28.66lbs

Fuel Tank Capacity: 1.3L/ 0.343Gal



Description

With this portable garden tree digger, tree transplanting and planting is no longer a trouble! Its strong power and practical shovel can make you lift trees easily, and can also help you quickly dig holes in the dirt. Efficient fuel utilization will not waste your money, it is a practical and worthwhile product!



Specifications

Color: Black, Yellow
Engine Type: Single-cylinder Two-stroke
Material: Aluminum Alloy, Cast steel, Iron
Process: Painting, Integrated Forging
Spark Plug Type: BM9A
Starting System: Manual Starting
Rated Power: 1250W
Max Power: 1900W
Speed: 6500r/min
Displacement: 52cc
Number of Hammering: 1500 times/min
Impact Energy: 15-45J
Fuel Ratio: 25:1(Gasoline: Engine Oil)
Fuel Tank Capacity: 1.3L/ 0.343Gal
Fuel Consumption: 0.6L/0.132Gal/H
Shovel Size (L*W): 29*14cm/ 11.42*5.51inch
Length from Collet to Shovel Bottom: 39cm/ 15.35inch
Handle Length: 12cm/ 4.72inch

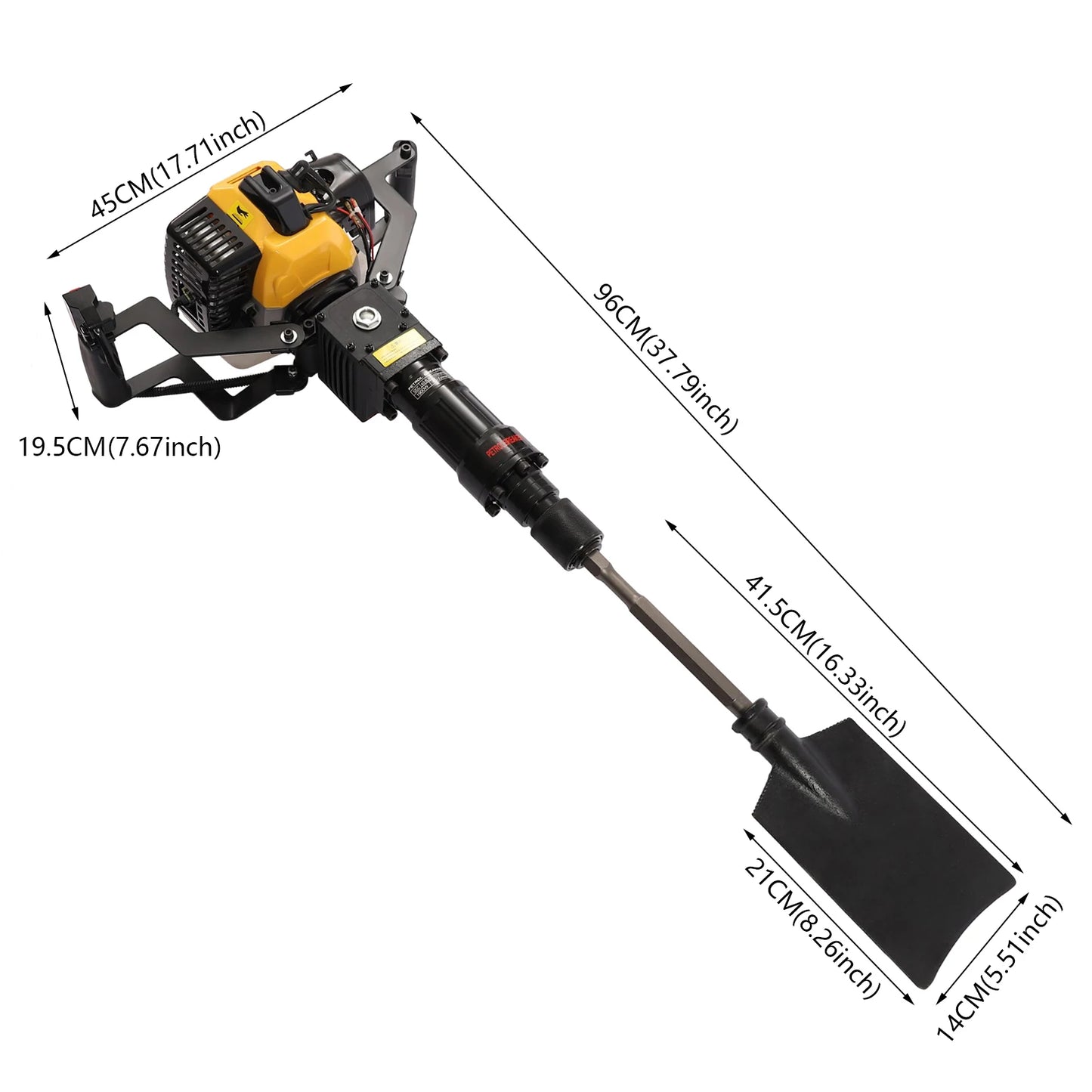

Product Size: 45*24*98.3cm/ 17.72*9.45*38.7inch
Net Weight: 16.4kg/ 36.16lbs
Gross Weight: 18.2kg/40.12lbs
Package Size: 63.5*49*29.5cm/ 25*19.29*11.61inch



Key Features

Build to Last: It is made of high-quality cast steel, iron, and aluminum alloy, sturdy and durable. The surface is treated with a painting process, which has good abrasion and corrosion resistance.

Powerful and Efficient: It adopts a two-stroke engine (1250W) for more stable operation. The strong power makes its speed reach 6500 rpm, and the number of hammers can reach 1500 times per minute, which can fully meet your needs for efficiency. Moreover, its impact energy can reach 15-45J, making your digging work easier.

Good Heat Dissipation: The portable garden tree digger has large cooling holes to ensure continuous work without stalling while extending its service life.

High Safety: It adopts the hand-pull start, and its throttle switch and flameout switch are designed to be on the same handle to facilitate your operation and for greater safety.

Convenient to Use: The connecting rod included in the package can be used with the shovel, with a length of 15.35 inches to enable you to dig deeper, and it is long enough to save more effort without bending down. Its fuel tank capacity is 0.343Gal, which allows you to get rid of the trouble of frequent refueling.



Large-scale Digging: The wide shovel (11.42*5.51 inches) can dig a large area at once. It not only digs roots through the soil ball but also effectively cuts off excess roots, making transplanting and planting trees easier and saving you time.

Money-saving: It can fully burn fuel during operation, consuming only 0.132Gal of fuel per hour, bringing you a better affordable user experience.

Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam to protect your products to the maximum extent possible.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

Rubber Handle: The soft rubber handle is 4.72 inches in length, ergonomically designed to make you feel comfortable and not tired after a long grip.

Iron Collet: Its hard iron collet can firmly fix the shovel rod and prevent it from falling to bring a stable and reliable digging.

Air Filter: It helps to filter impurities in the air and reduce the wear and tear of dust and sand on the engine, which can achieve stable machine operation.

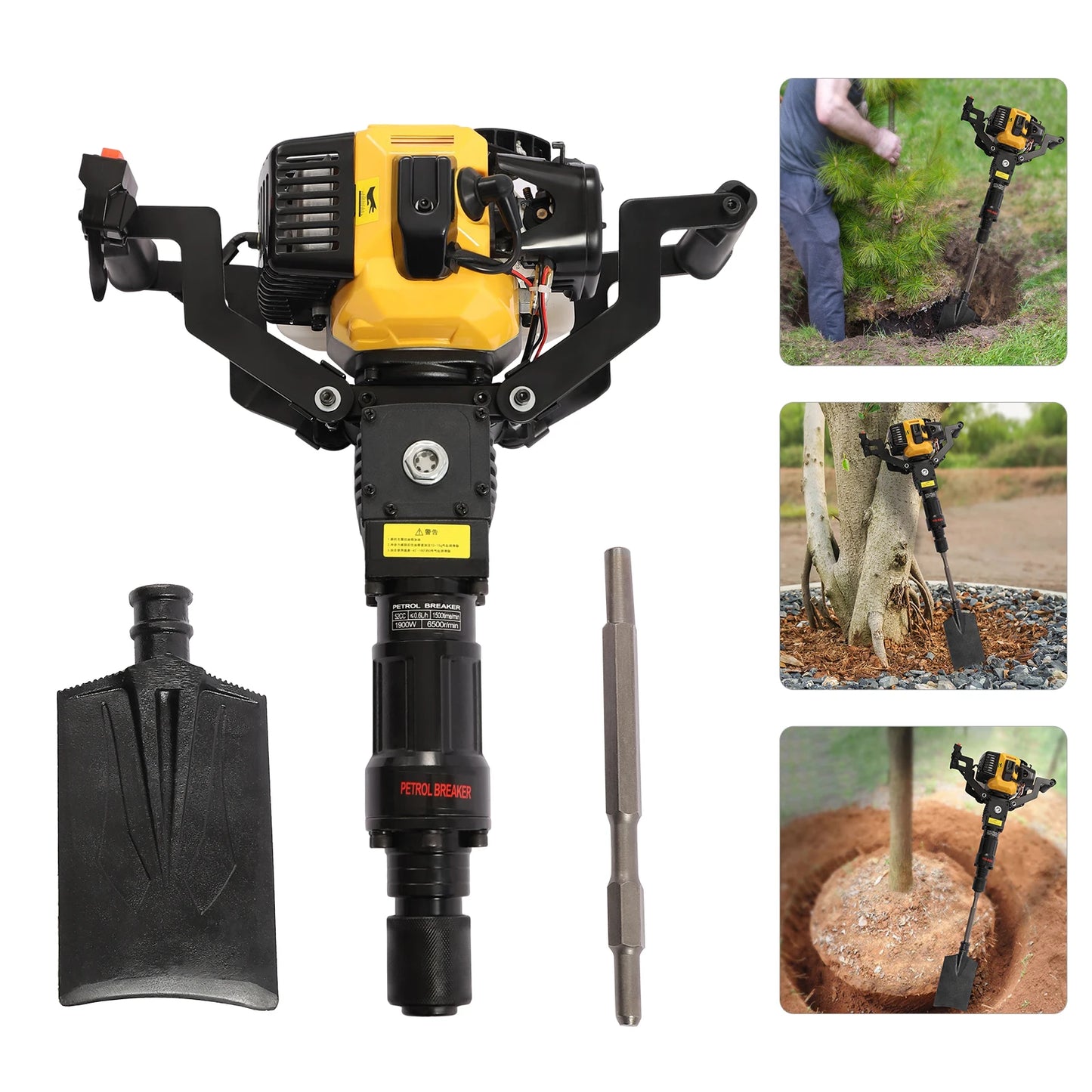

Application

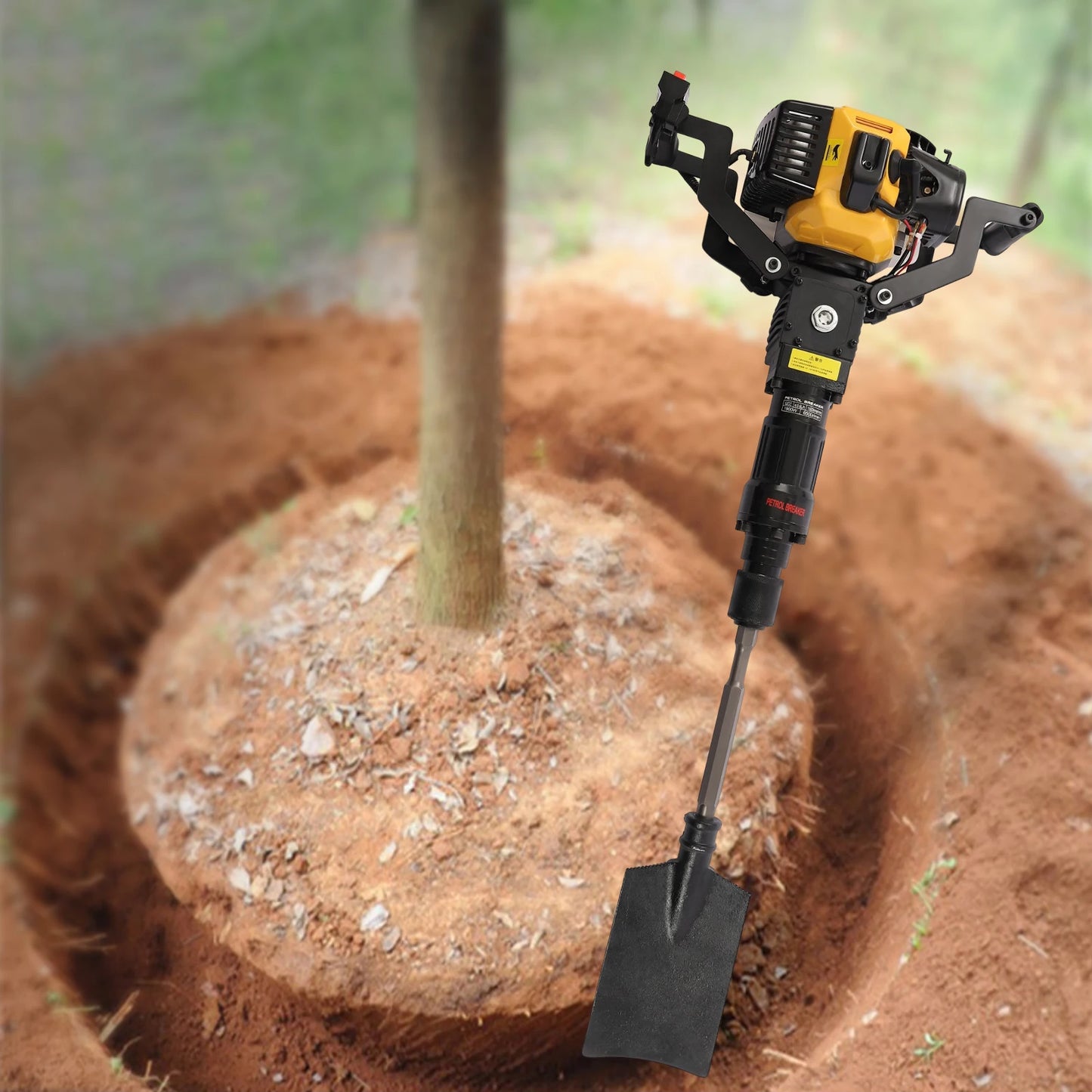

It is widely used for tree ball lifting and root cutting in gardens, farms, garden bushes and other places. If it is added with pointed or flat picks, it can also break up loose and brittle stones and walls.



Installation of Shovel

1.Knock in the handle and shovel body squarely and insert the shovel into the machine.
2.Push the lock of the machine upwards.
3.Secure the handle and release the lock.
4.After installation, check to make sure it is in place.

How to Start

1.Press the oil bubble to supply oil to the tank.
2.Close the damper.
3.Pull start handle 3-5 times.
4.When you hear the machine ignite, push the damper open.
5.Pull the starter handle again 1-3 times to start the machine, then it can be used normally.

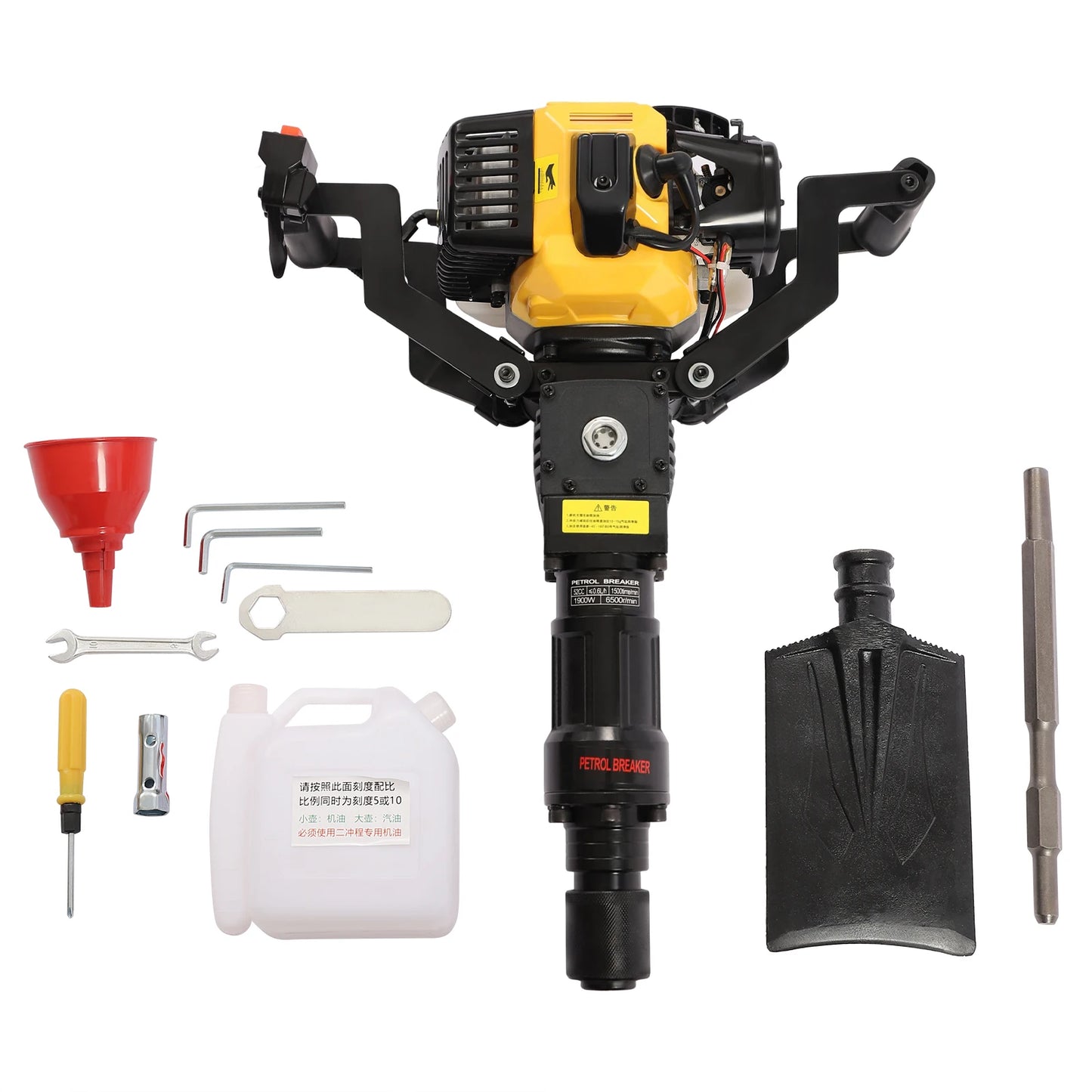

Package Included

1* Main Body
1* Funnel
1* Fuel Oil Mixing Bottle
1* Shovel
1* Connecting Rod
1* English Instruction
All Accessories for Installation



Notes

1.Please put your safety first, and always operate the machine according to the instructions in the user manual. We recommend wearing appropriate hand and eye protection (not included).
2.This product is only used for dirt applications, not for rock, stone, or metal surfaces/debris.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.



If you are interested in the product or have any questions, please feel free to contact us, we will reply to you within 24 hours.
